Thermal Management System
-
HVAC -
Electrical Components -
Heat Exchanger -
Integration Module

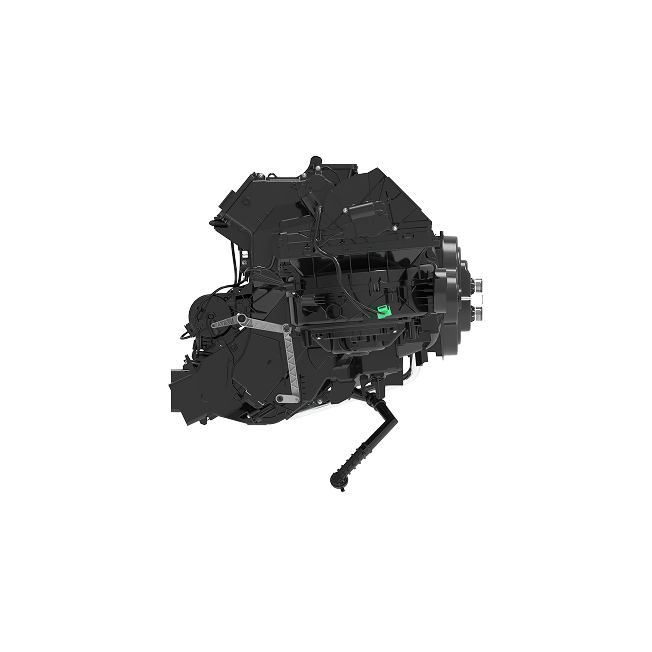

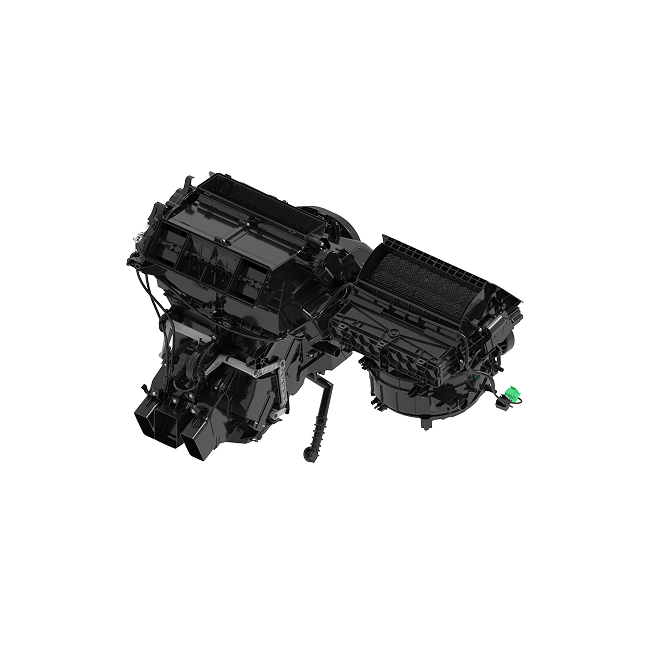

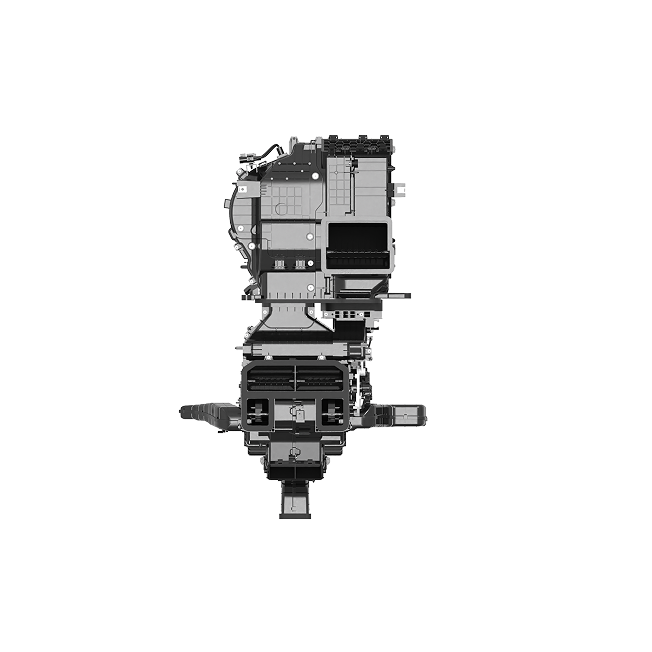

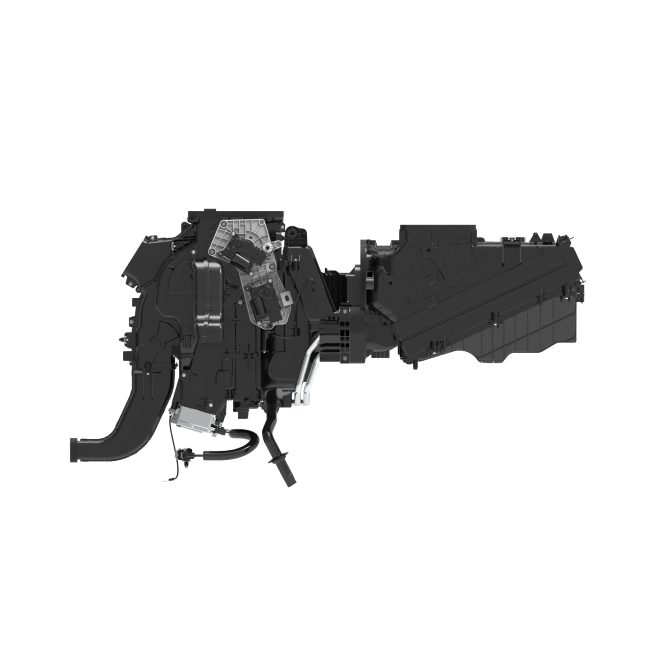

HVAC
-

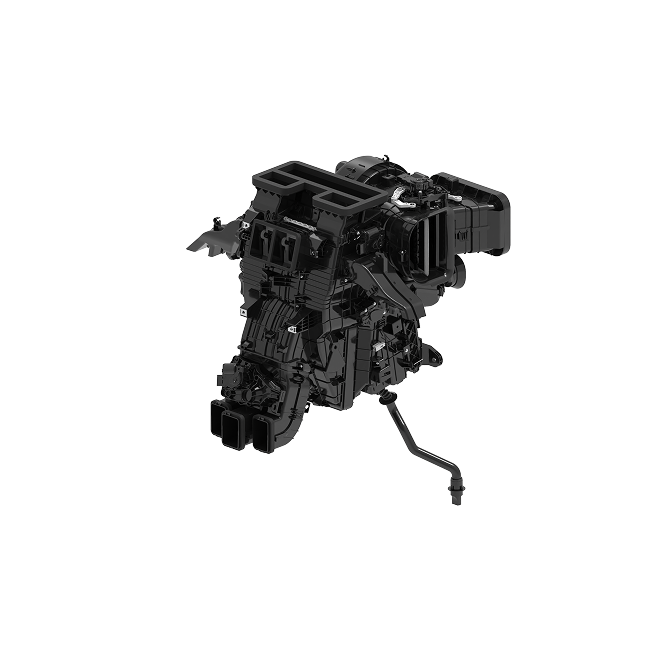

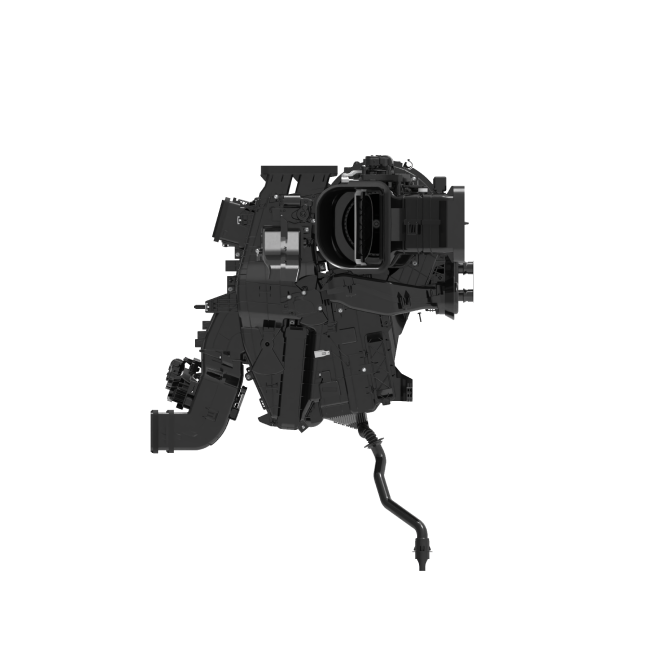

Offset-Mounted HVAC
Enhanced space compatibility and greater installation flexibility.
-
-

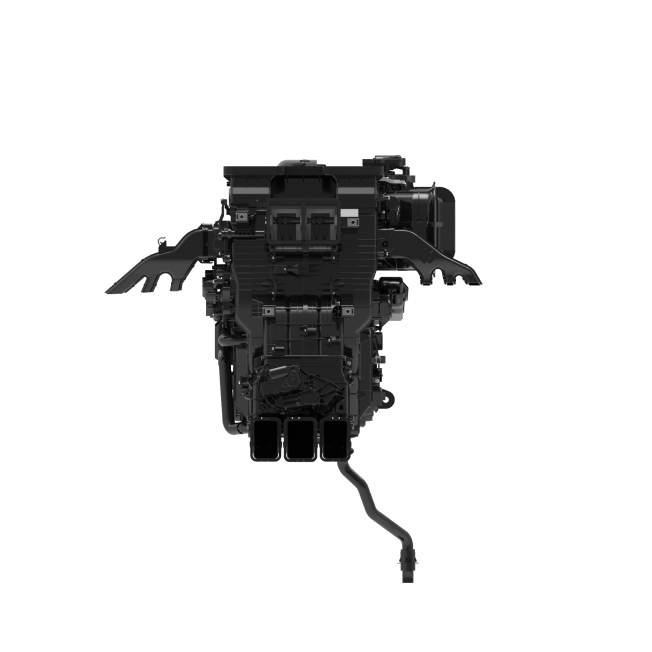

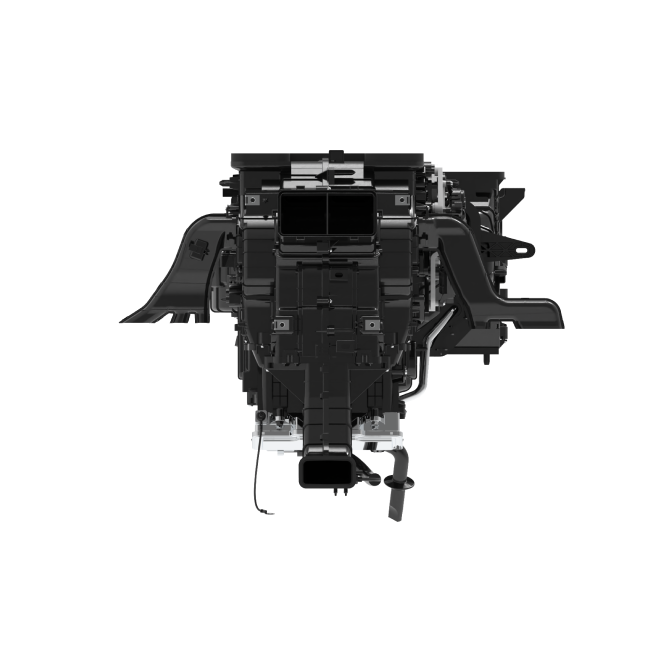

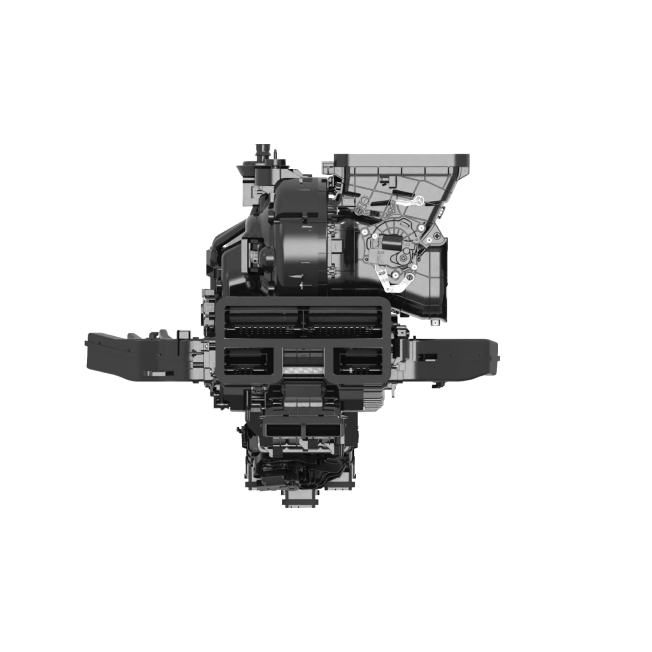

Center-Mounted HVAC
Expanded footwell space and improved platform adaptability.
-
-

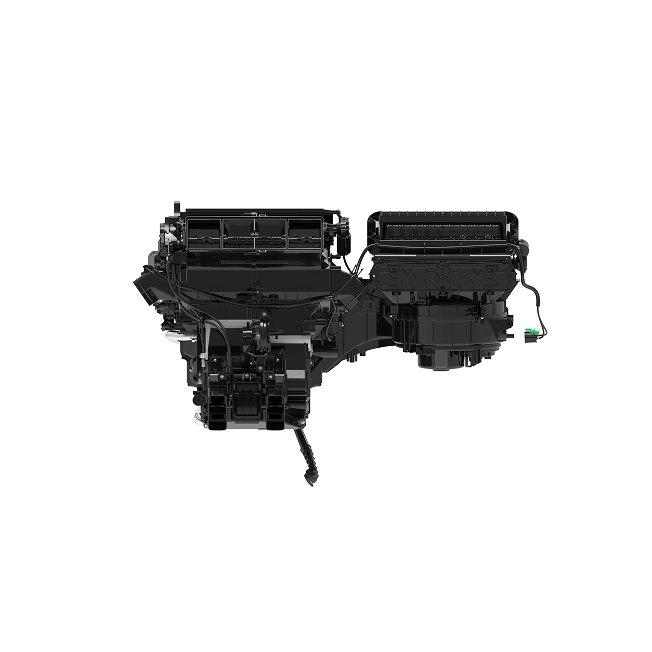

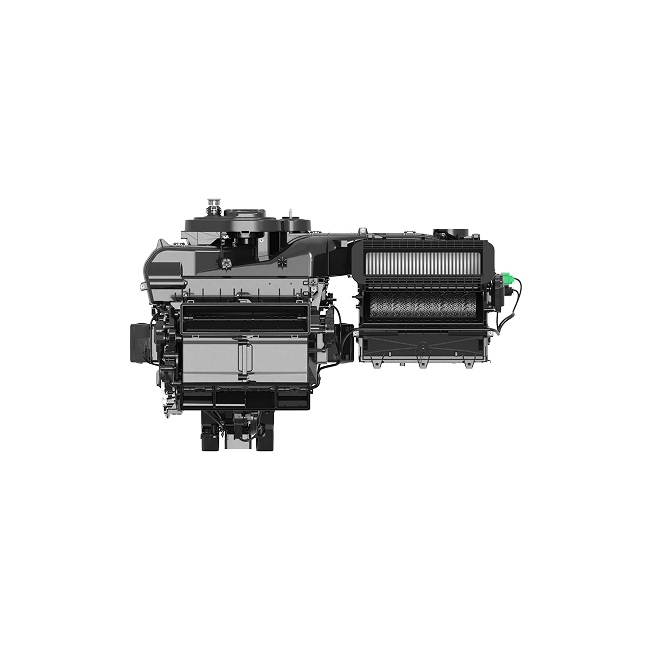

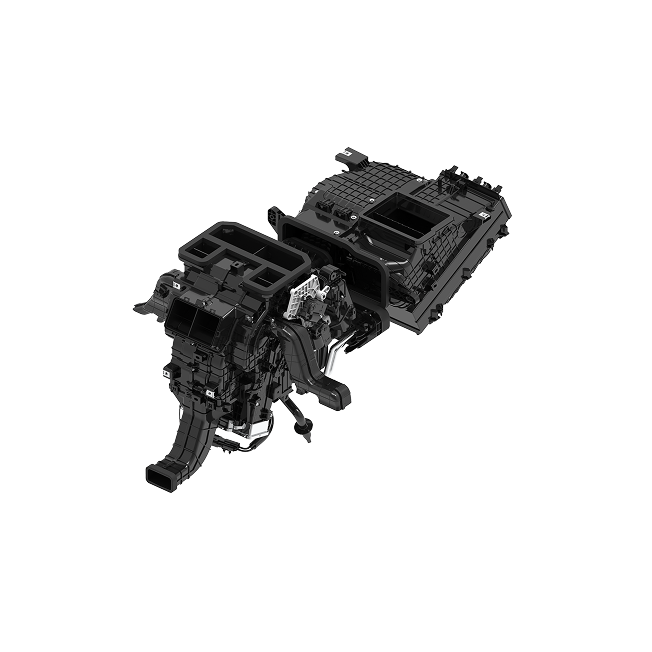

Split-Type HVAC
Isolates fan noise for quieter operation and maximizes cabin space utilization.
-
查看全部
Electrical Components
-

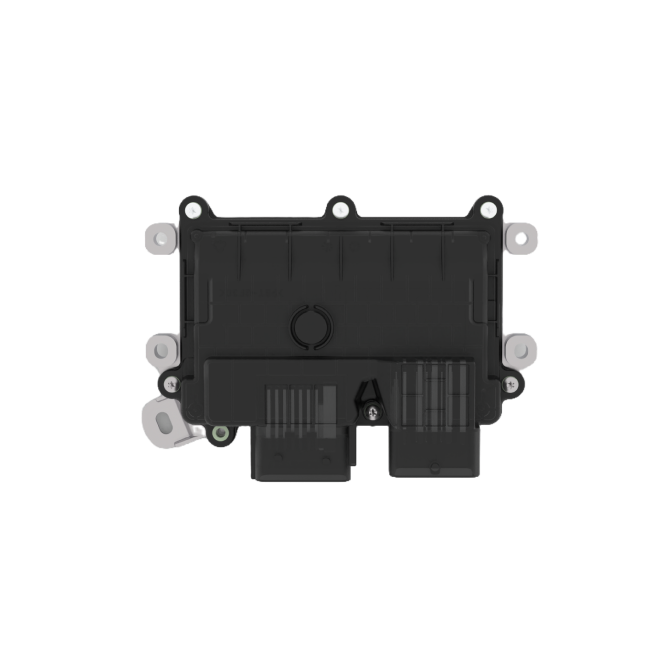

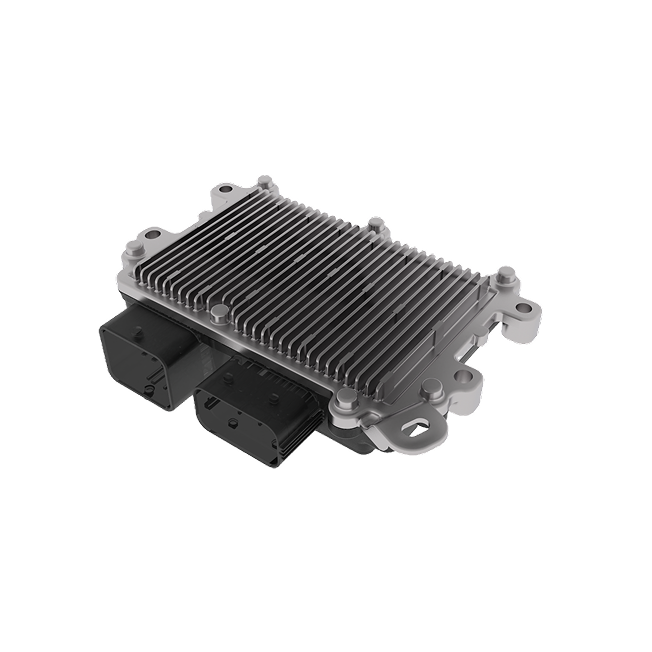

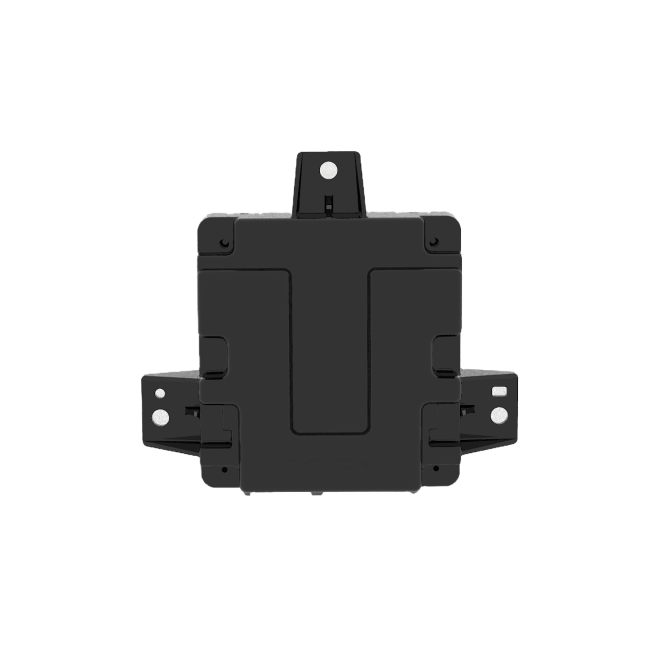

Heat Pump ControllerPrecisely controls core heat pump components (compressor, valves, PTC thermistors, etc.) to efficiently deliver required cooling/heating capacity for air conditioning and battery systems.
-
-

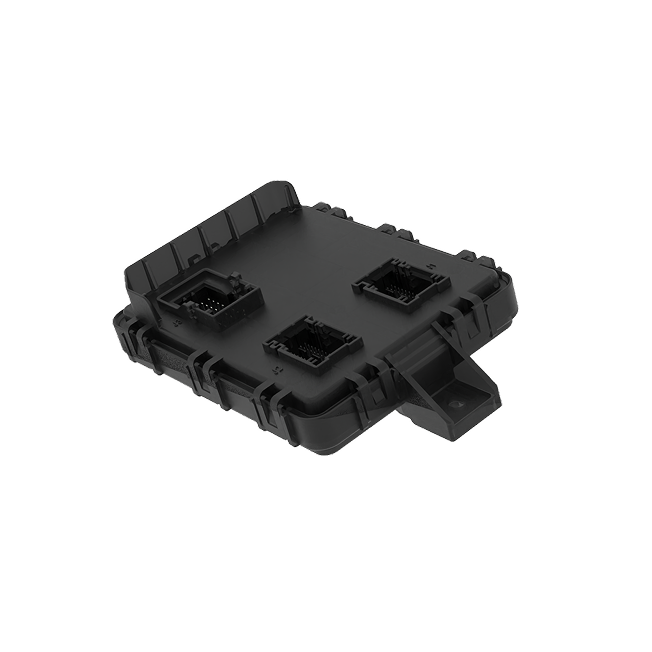

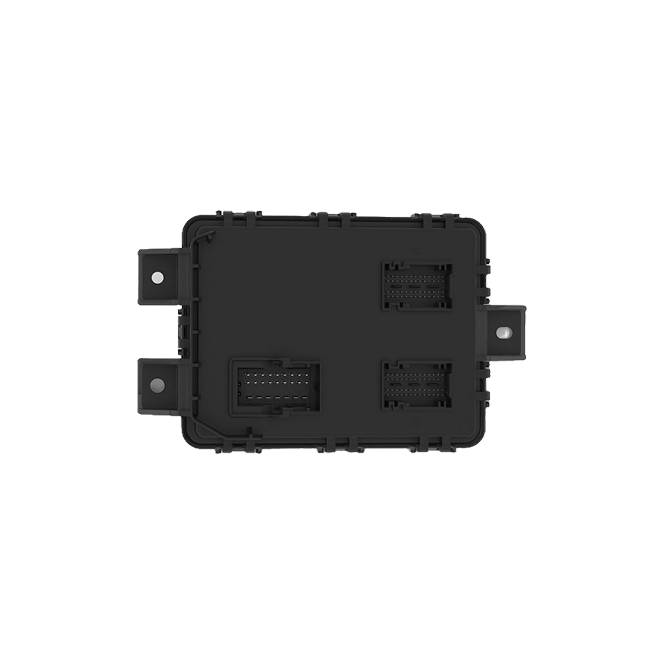

Thermal Management ControllerIntegrated control of the vehicle's comfort air conditioning, heat pump system, and water circuit system, achieving optimal passenger cabin comfort and battery/electric drive thermal management.
-
-

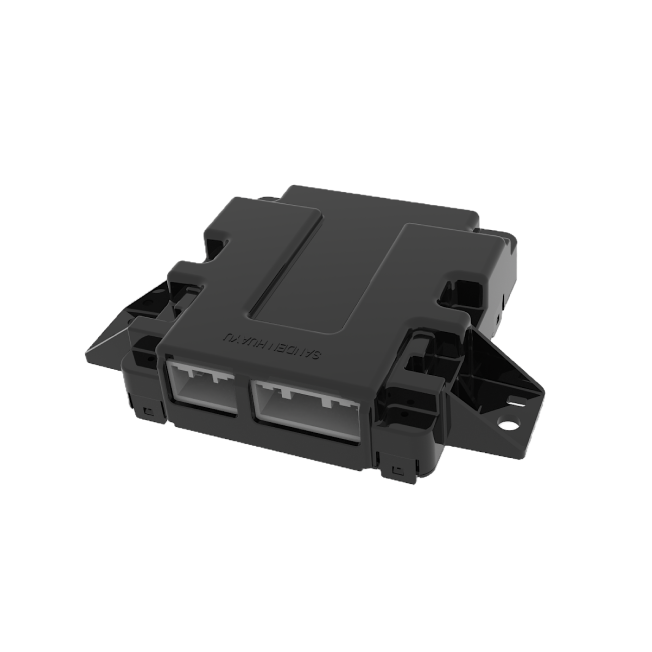

Smart ActuatorIntegrated drive for thermal management actuators such as water pumps, water valves, and expansion valves, enabling intelligent control and remote upgrades via network communication.
-
查看全部
Heat Exchanger
-

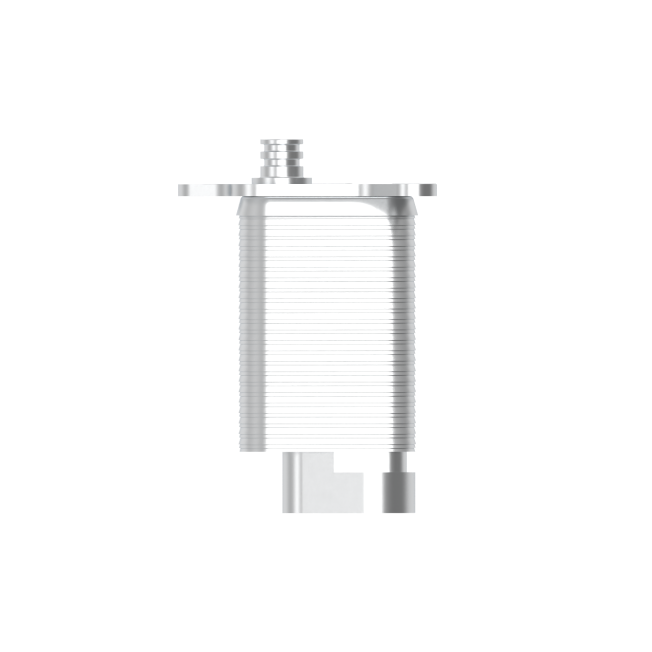

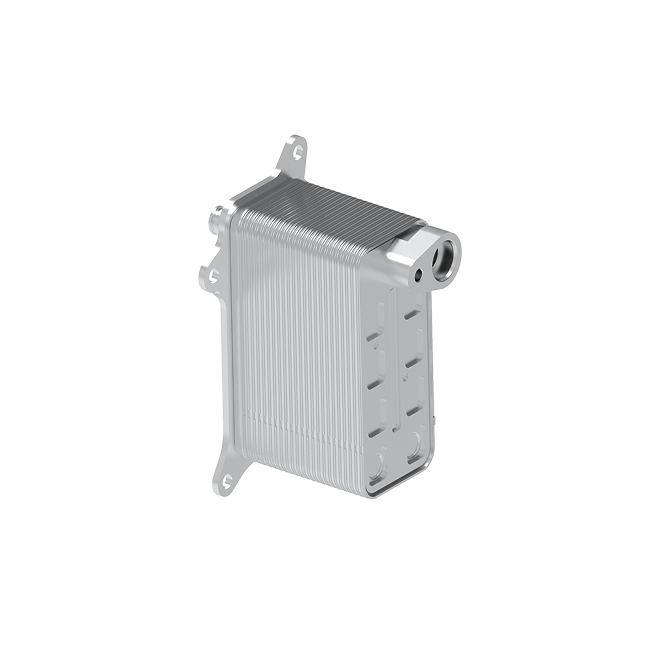

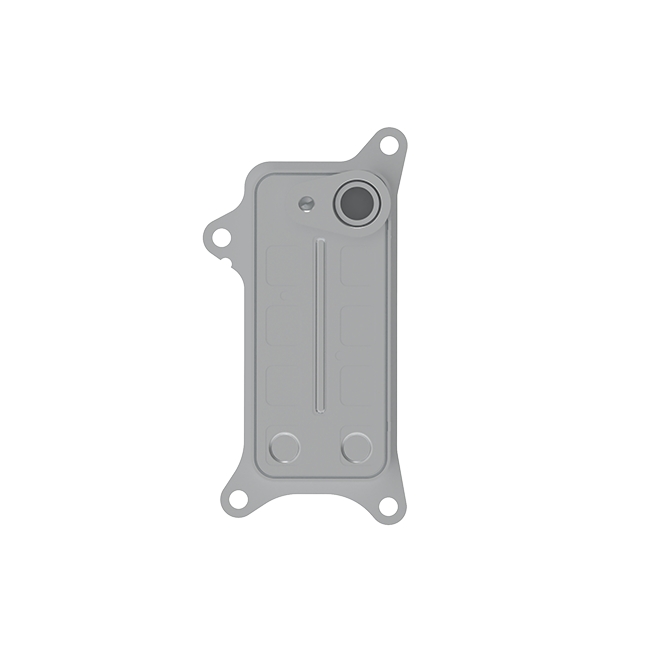

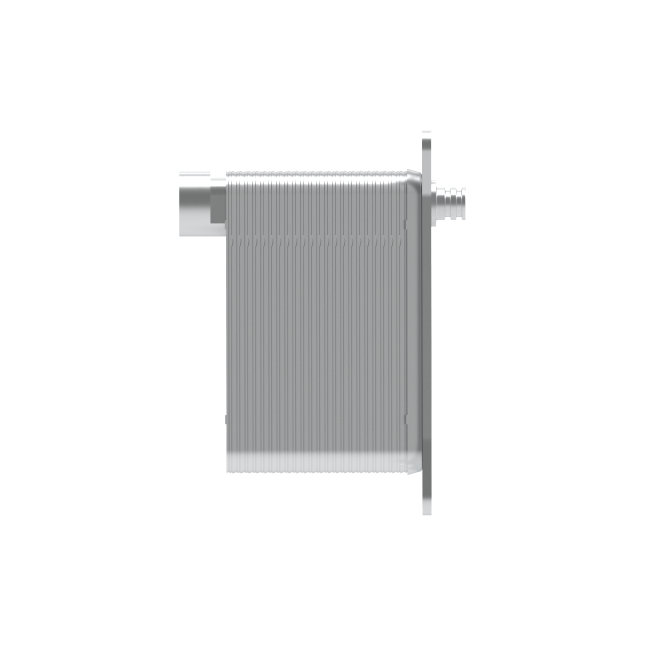

U-Flow High-Efficiency Battery Chiller
Vacuum brazed, internal fin structure, U-shaped flow channels, and enhanced heat transfer efficiency.
-
-

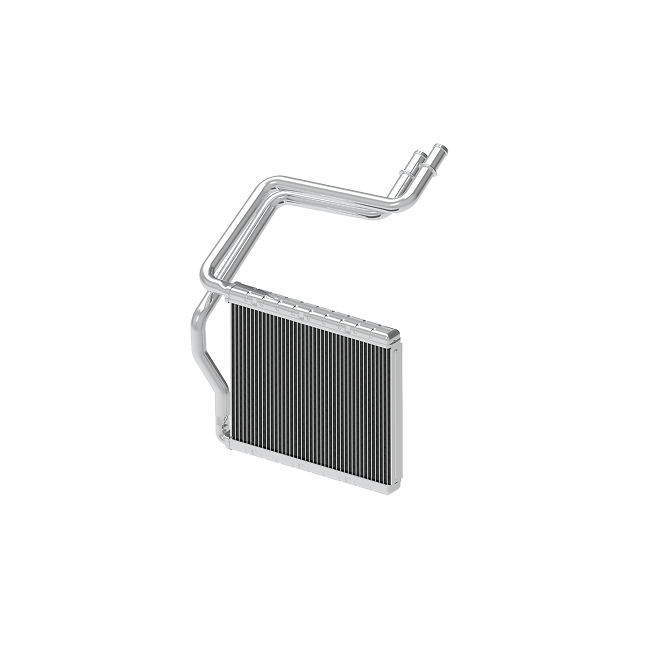

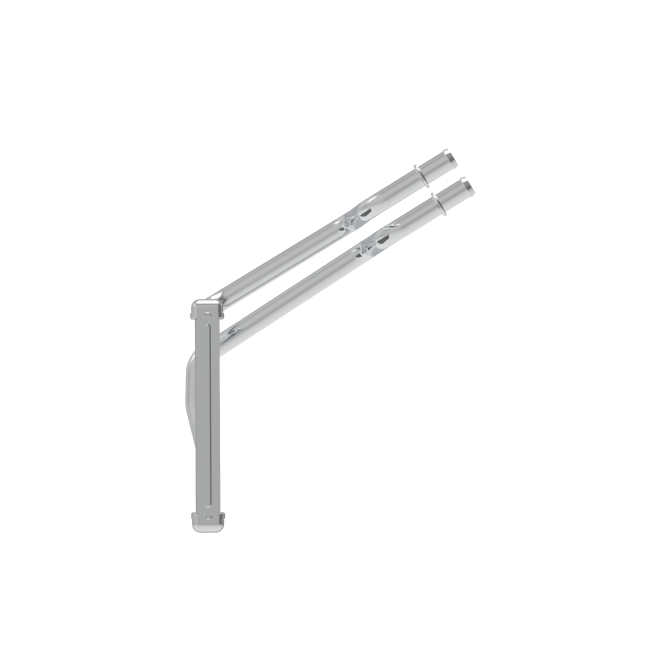

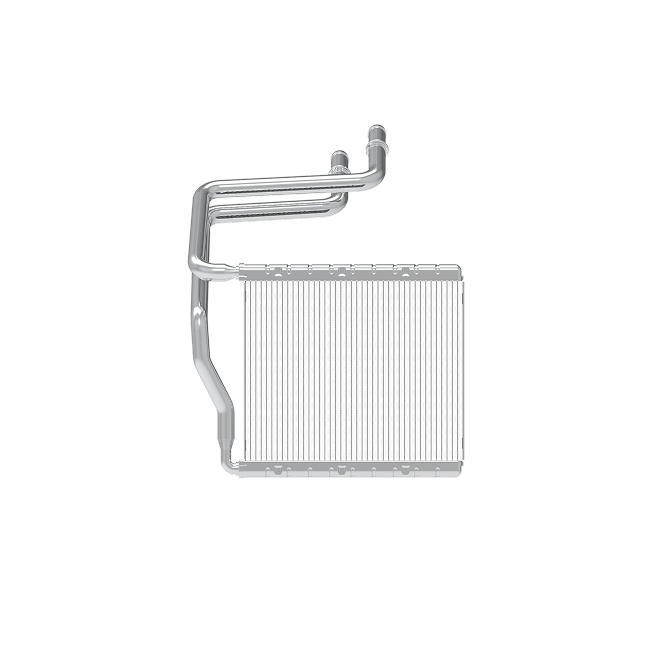

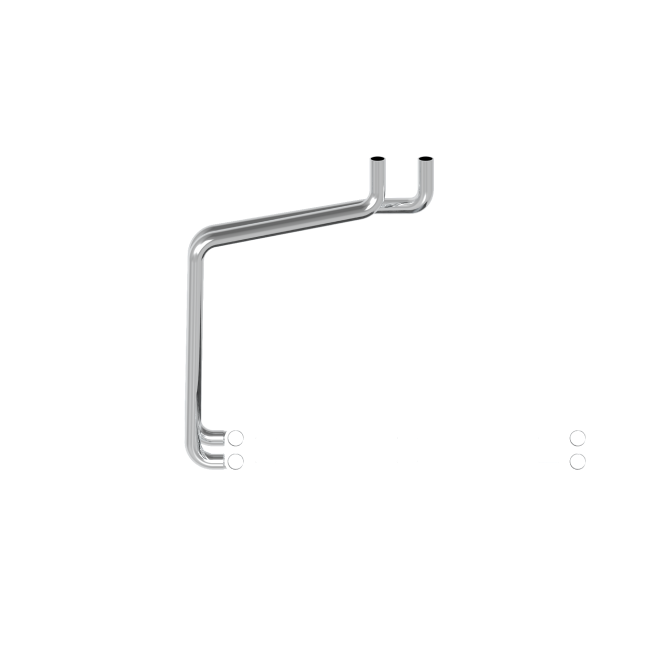

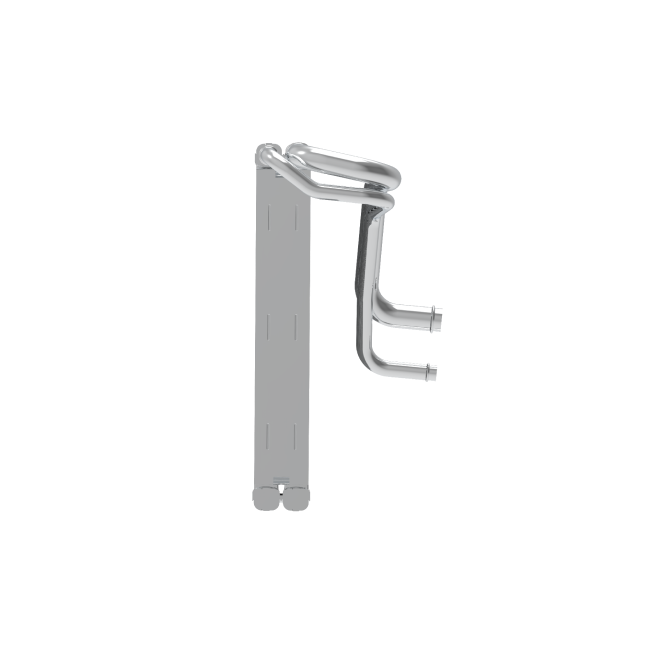

Thin-Wall B-Type Tube High-Performance Heating Core
Thin-wall B-type tubes, low air resistance, and lighter and slimmer.
-
-

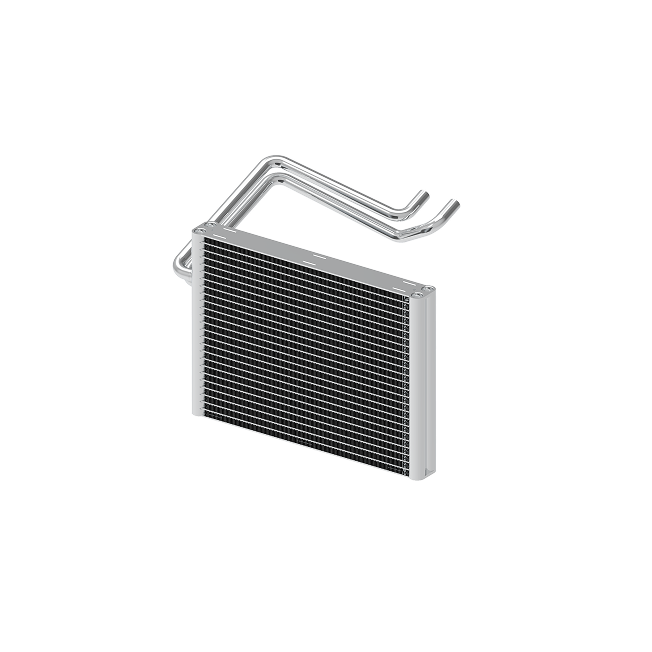

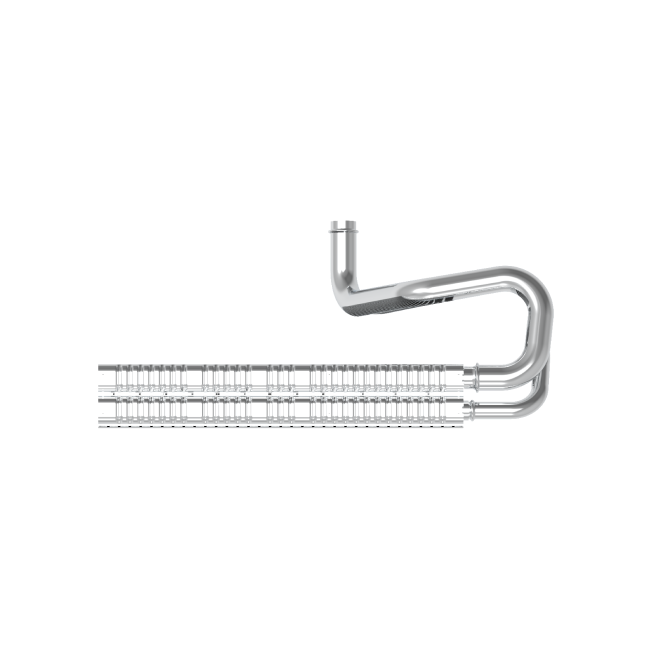

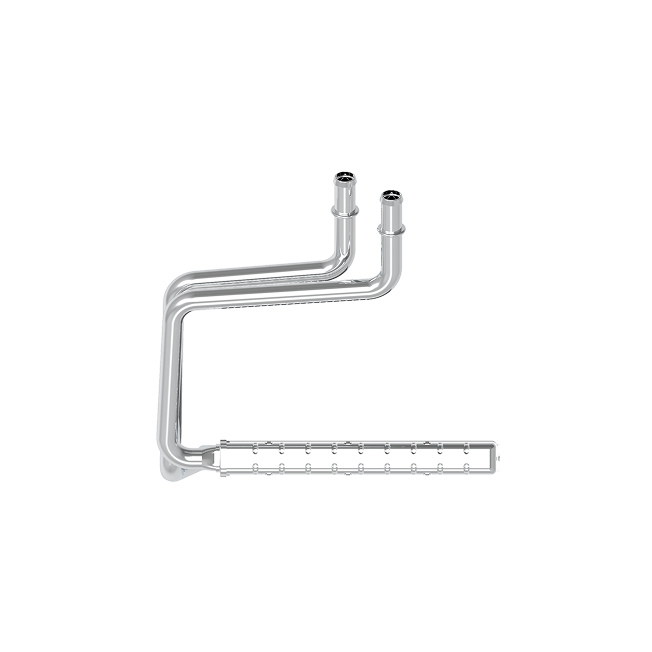

Four-Pass Dual-Row Round Tube High-Efficiency Internal Condenser
Four-pass design, more uniform temperatures, and more thorough heat exchange.
-
-

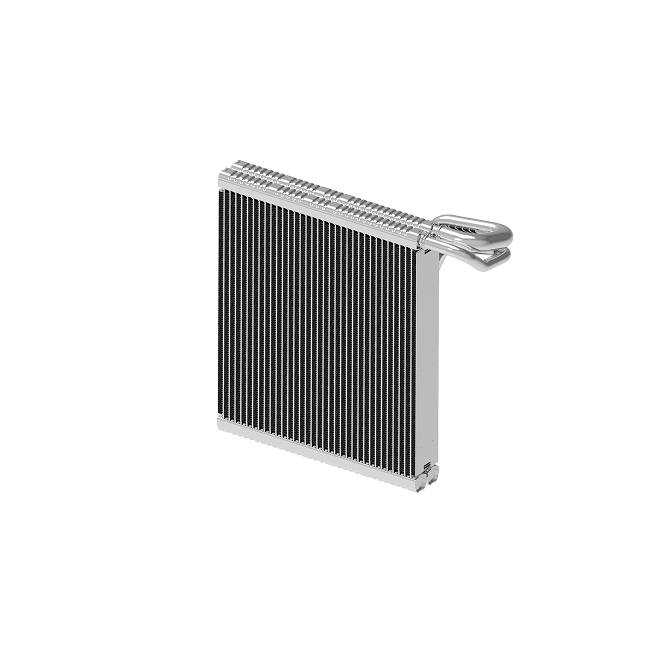

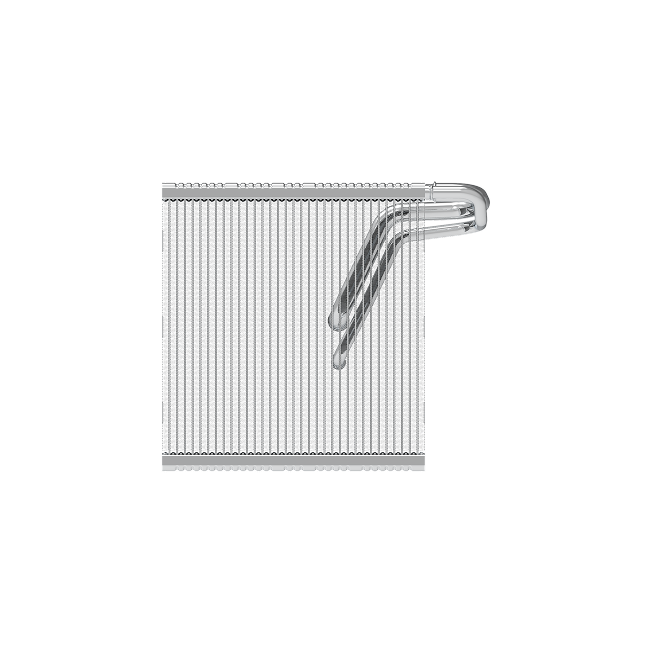

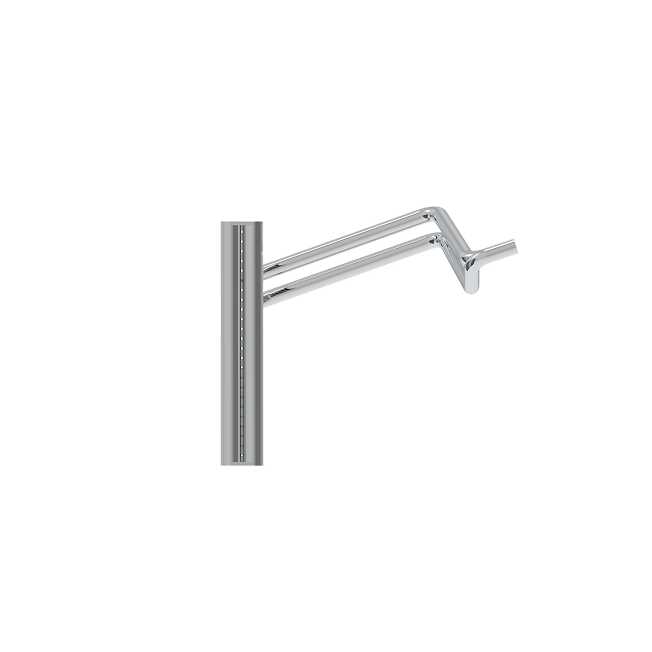

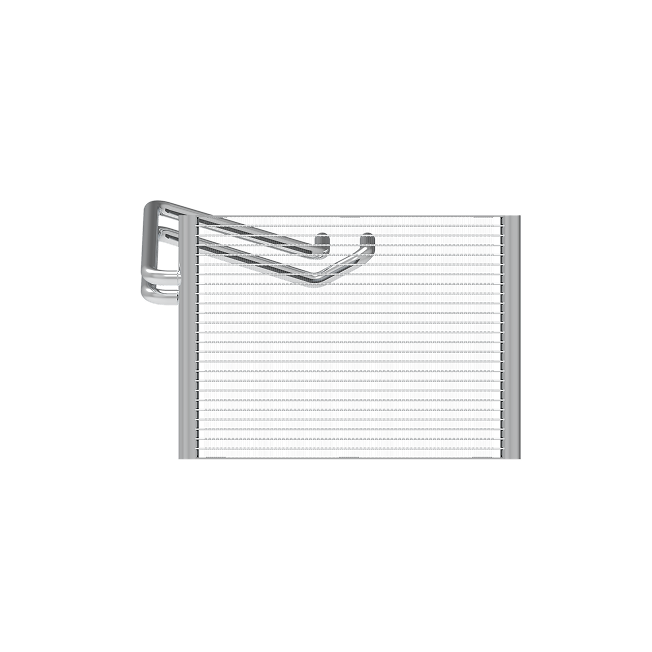

Six-Pass Si Flux-Coated Evaporator
Half-structure manifold, lighter weight, and higher efficiency.
-
查看全部

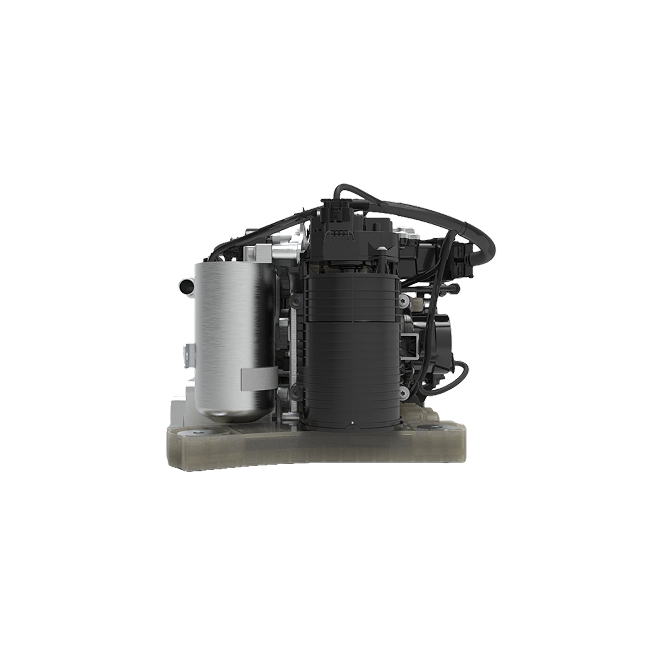

Integration Module
-

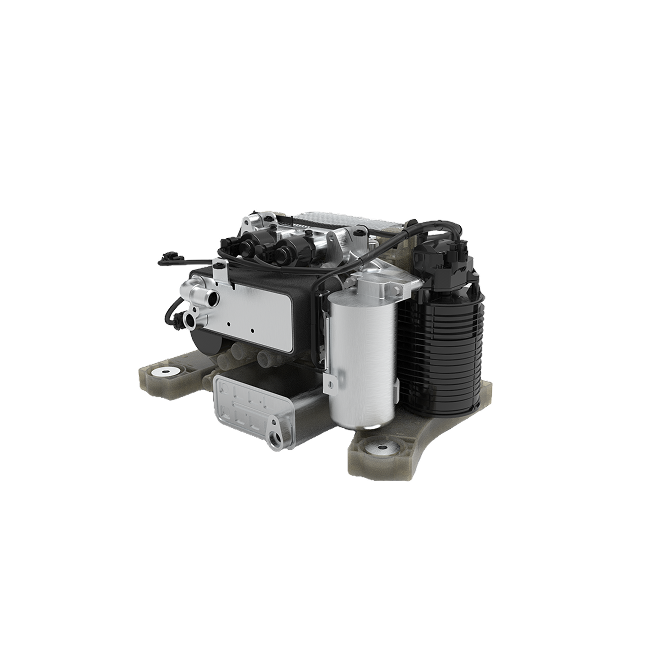

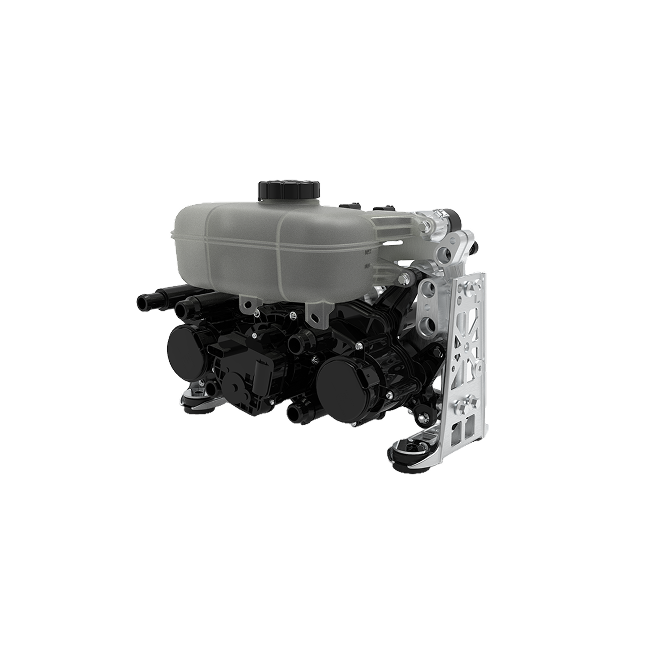

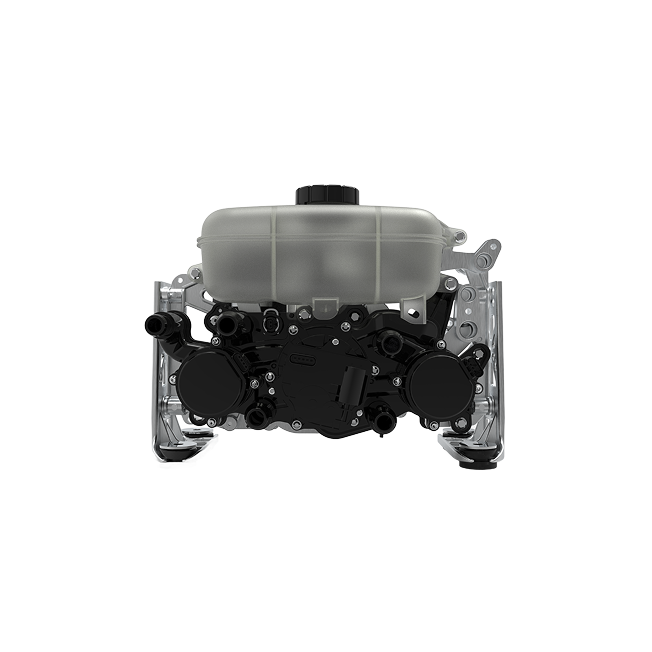

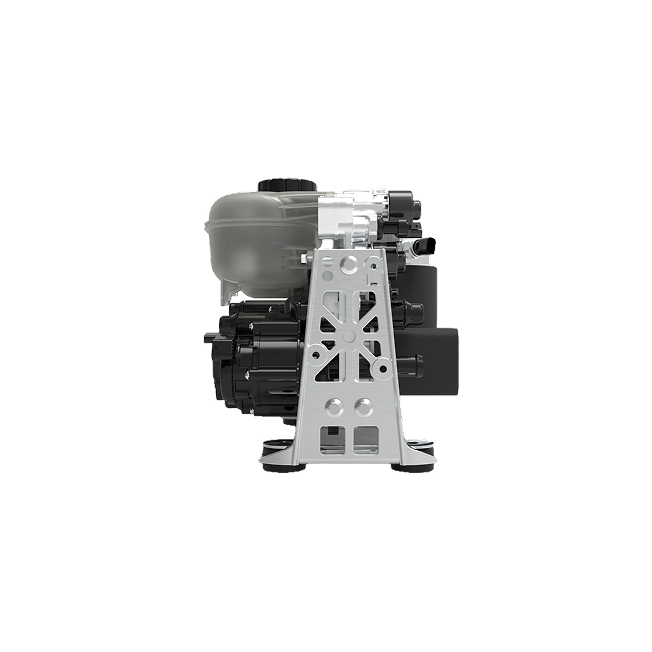

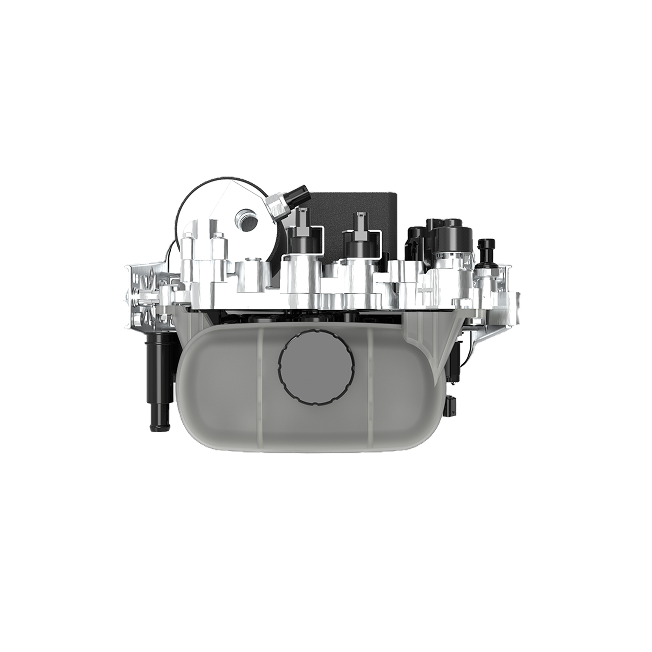

AH4EM
Dimensions: 285mm×402mm×295mm
Weight: 7.75KG
Integrated components: water tank, water side flow plate, water pump, multi-port water valve, refrigerant flow plate, gas-liquid separator, water-cooled evaporator, electronic expansion valve, large-bore solenoid valve, check valve, pressure sensor, and temperature sensor.
-
-

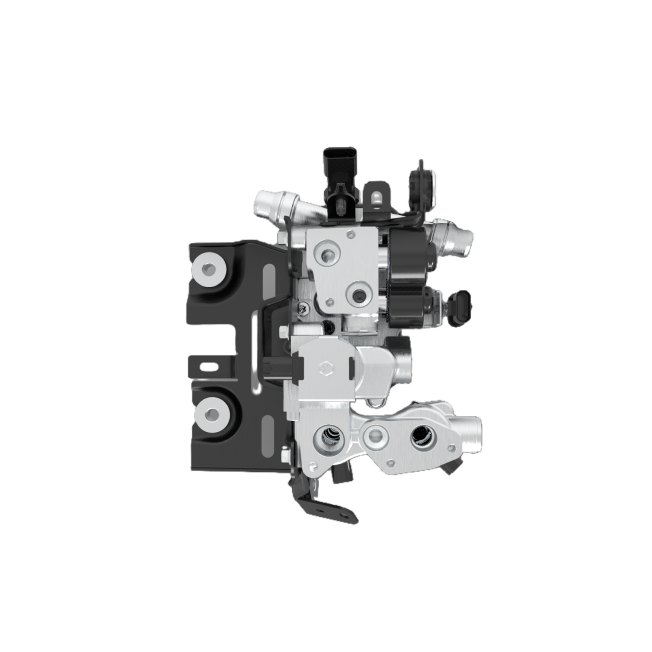

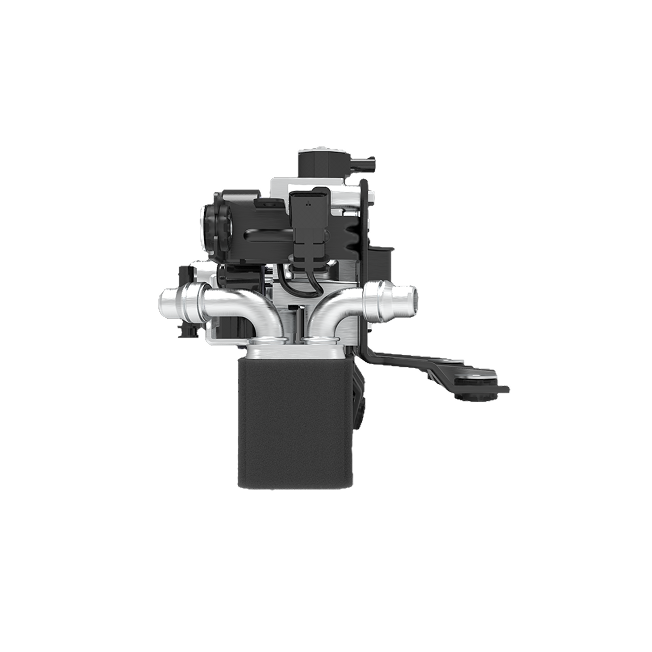

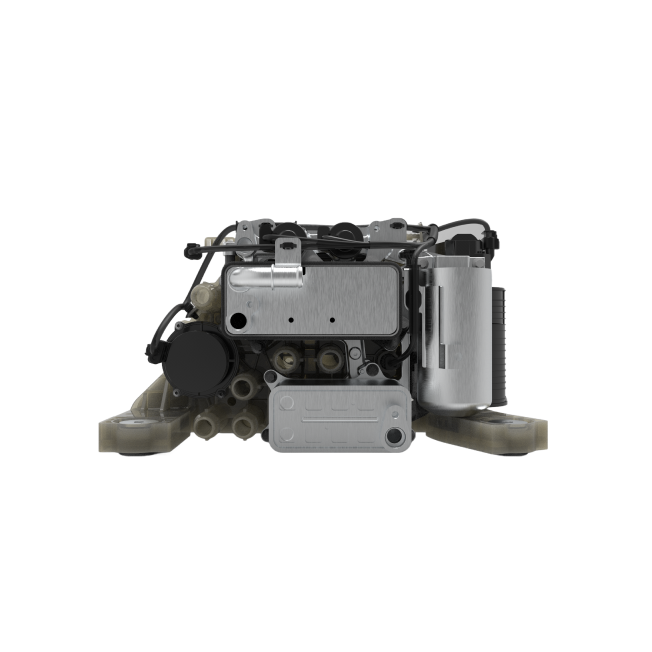

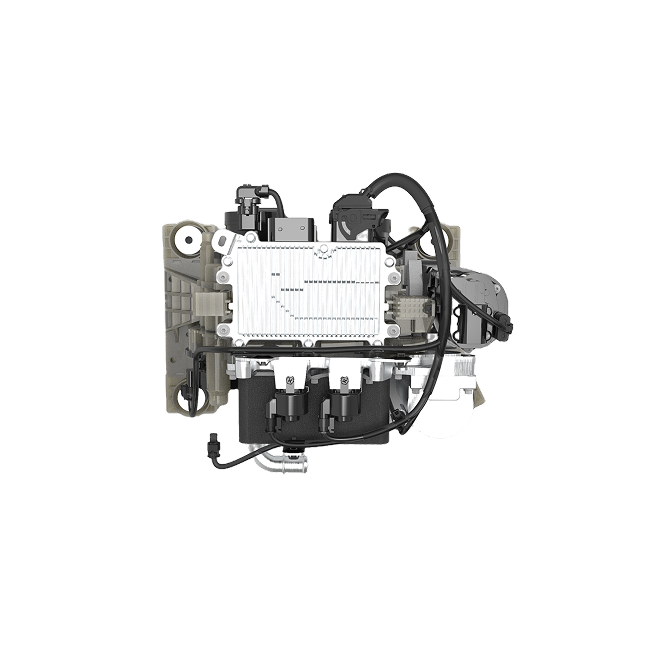

S12M2
Dimensions: 351mm×442mm×256mm
Weight: 8KG
Integrated water-side flow plate, water pump, multi-port water valve, refrigerant flow plate, liquid receiver, electronic expansion valve, water-cooled condenser, and water-cooled evaporator.
-
-

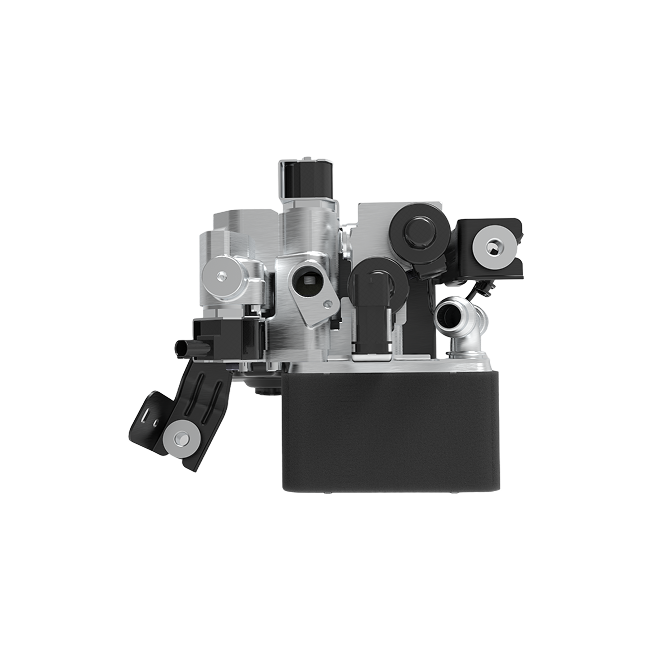

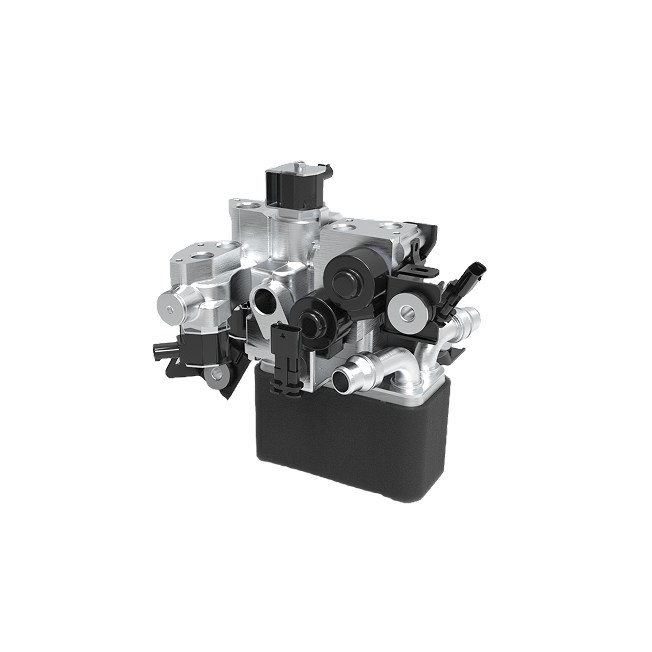

S12M1
Dimensions: 214mm×277mm×232mm
Weight: 3.5KG
Integrated water-cooled evaporator, electronic expansion valve, solenoid valve, and valve island.
-
查看全部
